Welcome to

Test Right Services

Electrical Appliance and Fire Services Compliance Testing

TOWNSVILLE BASED PROFESSIONAL TEST AND TAG SERVICES

Done Right ON Time

Test and Tag services in Townsville supplied with  Asset List, Detailed Test Results and Failed items PDF reports.

Why you should test and tag

All electrical appliances must be tested to AS/NZS3760:2010 to ensure safety of staff,clients and building and ensures compliance when audits are conducted by work-safe,work-cover, fire and emergency services or industry regulator.

As per AS/NZS3760:2010 all Portable Electrical Appliances that are connected to a generator or a fixed electrical supply that are equipped with a flexible lead and plug should be tested at specific intervals depending on use and the environment they are used in.

TESTS CONDUCTED

  1. Visual test – leads,plugs ,covers and safety devices
  2. Earth Bond Test – Class 1 appliance earth test
  3. Insulation test – 500V insulation test , this is reduced to 250V on sensitive equipment and surge protected equipment to prevent damage to the (EUT )equipment under test
  4. Earth Leakage test –  run test is conducted by starting the EUT and monitoring the leakage voltage. If it is over the minimum requirement of 5mA for class 1 appliances it is failed.NEW EQUIPMENT

    All new equipment that is put into service must have a “new to service tag” attached to the appliance.

    the following should appear on the tag

    New To Service

    Not tested to AS/NZS3760:2010

    Tag Number:

    Date into service:

    Next Test Date:

    tagged by:

    Best practice,as recommended by Test Right Services, is to test all new equipment as per AS/NZS3760:2010 . This also serves to have an accurate asset list of all equipment in use on the site and peace of mind that the new equipment is safe to use.

    I have had many new items fail due to polarity issues and earthing issues on new equipment.

    Leakage failure due to poorly designed electronic equipment.

    So many items enter the Australian market without the c-tick logo

    Electrical and electronic products sold into the Australian and New Zealand market must be RCM ( Regulatory Compliance Mark) compliant. Make sure your equipment is compliant and have the c-tick logo.

    Testing RCD’s (Safety Switches)

    Tested as per AS/NZS3760:2010 . Trip Time tests and Push Button Tests conducted 24,12,6 and 3 monthly depending on location and use.

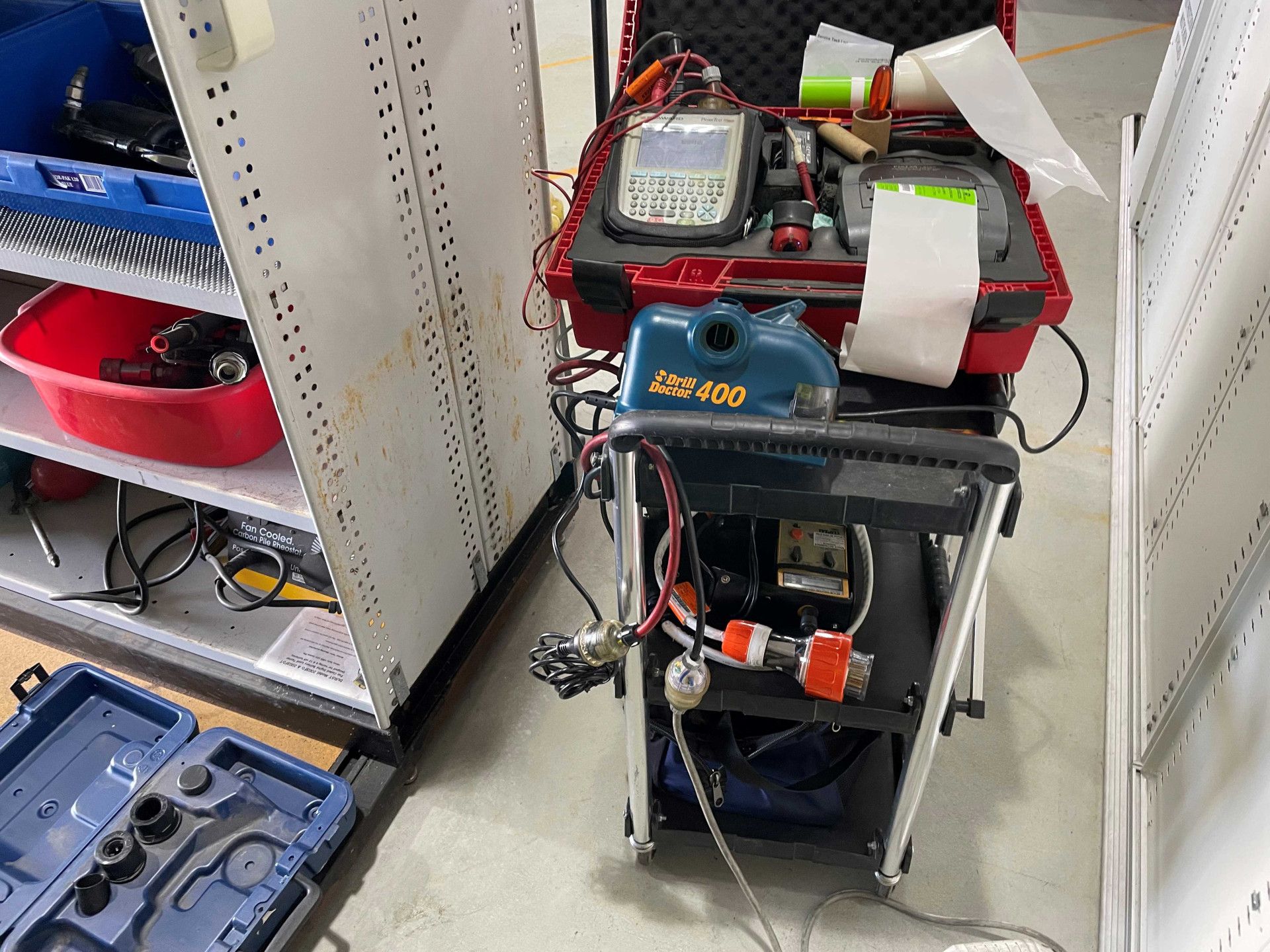

    The PAT machine has a built in RCD testing facility and all test results are stored and downloaded to the software for reporting. All these results are included in the test and tag reports provided by Test Right services.

Why you should inspect and test fire equipment

As a building owner or occupier you have a responsibility to ensure all fire equipment is inspected on a regular basis as per AS1851:2012 standards guide lines.

  INSPECTION

Visual inspection looking for damage and rust on the cylinder. Making sure all instructions are legible and without deterioration. A fire location sign is installed above the equipment as per standards. making sure the equipment has a service tag attached to the unit.

  TESTING

The fire extinguisher is removed from the bracket for testing. Bracket is checked as well as all fittings on the equipment. Anti tamper is replaced and pressure checked on the gauge if equipped. The Fire extinguisher is weighed and checked as per unit specs. The extinguisher is cleaned and the service tag is stamped with the appropriate service level number .

  REPORTS

All data is entered into the PAT machine Fire Testing Module and PDF reports are extracted via the software.

Asset Summary

Assist List

Detailed test per item

Yearly Condition Report

Non compliance report with recommendations on rectification or replacement of failed equipment

Contact us for a free quotation for your electrical and fire compliance testing.

Fully equipped mobile testing at your workplace or on on your job site

Safety Switch testing as per AS/NZS3760:2010 trip time tests and push button tests

Supply and installation of Fire Extinguishers in offices,workshops and vehicles . All of our fire equipment supplied are high quality products from our supplier, Flamestop Australia

  • SAMPLE PDF REPORT

CONTACT US FOR YOUR TEST AND TAG REQUIREMENTS IN TOWNSVILLE , CHARTERS TOWERS , INGHAM AND AYR
