Services

PROFESSIONAL TEST AND TAG SERVICE

All electrical appliances must be tested to AS/NZS3760:2010 to ensure safety of staff,clients and building and ensures compliance when audits are conducted by work-safe,work-cover, fire and emergency services or industry regulator.

As per AS/NZS3760:2010 all Portable Electrical Appliances that are connected to a generator or a fixed electrical supply that are equipped with a flexible lead and plug should be tested at specific intervals depending on use and the environment they are used in.

TESTS CONDUCTED

  1. Visual test – leads,plugs ,covers and safety devices
  2. Earth Bond Test – Class 1 appliance earth test
  3. Insulation test – 500V insulation test , this is reduced to 250V on sensitive equipment and surge protected equipment to prevent damage to the (EUT )equipment under test
  4. Earth Leakage test –  run test is conducted by starting the EUT and monitoring the leakage voltage. If it is over the minimum requirement of 5mA for class 1 appliances it is failed.

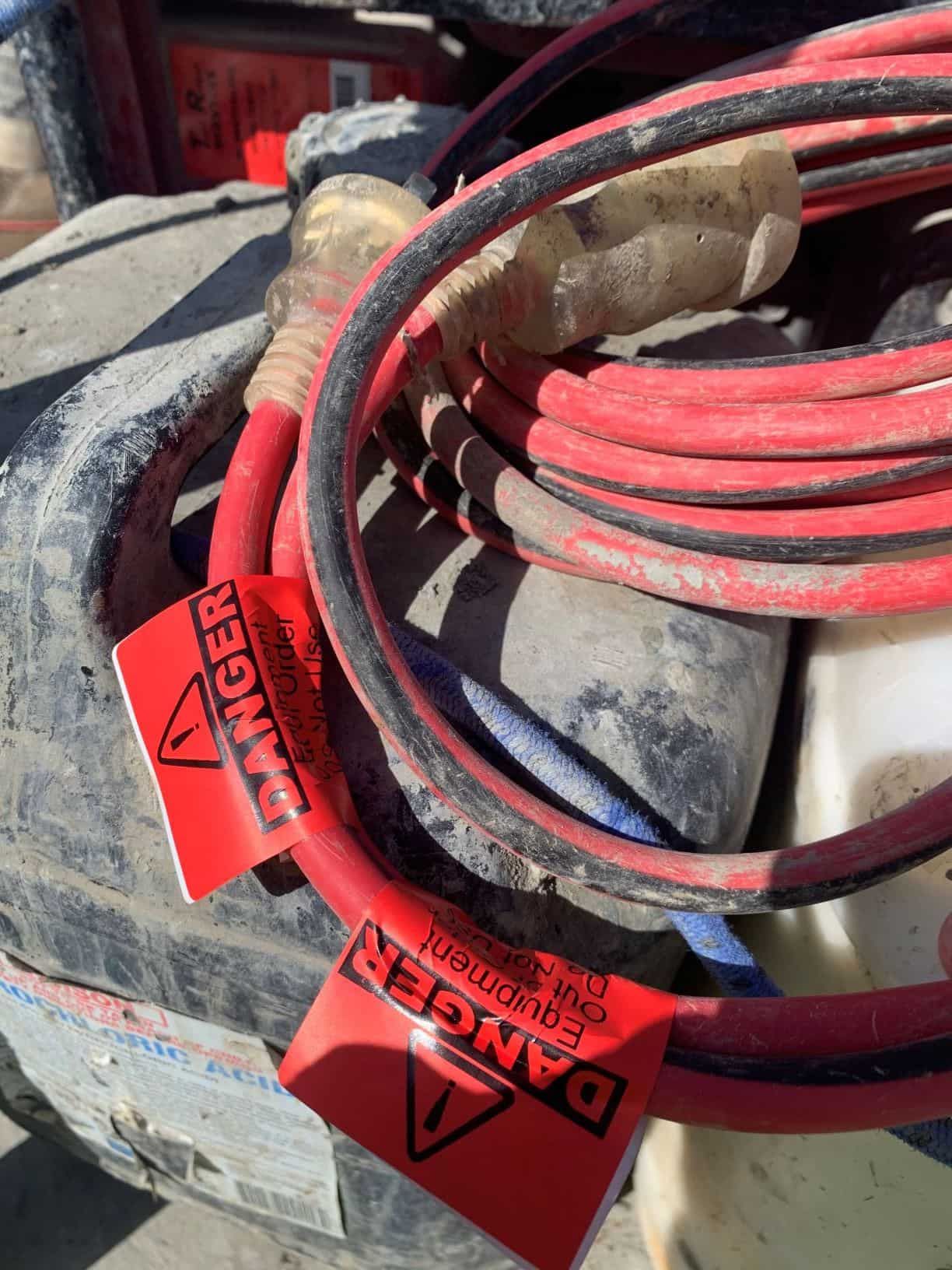

We use the latest PAT from Seaward. Elite Pro Plus connected to an AS/NZS3760:2010  tag printer. This ensures that all items are checked with the PAT tester and no tags are hand written. All the data entered into the PAT unit , Appliance ID, Description, serial numbers and dates are downloaded to the Seaward Patguard software . From the software PDF reports are generated . These are an Asset list, Detailed test results and a Failed items report. The failed item report will contain photo evidence and a comment on the failure. All failed items are double danger tagged and placed in quarantine for repairs or disposal.

EFLI TESTS

All outlet 240 v sockets that the PAT machine is plugged into are tested with a specialized Earth Fault Loop Impedance tester to ensure the earth fault path is within tolerances . This is essential for accurate test results and for correct operation of RCD’s on that installation. A polarity and earth voltage checks are conducted as well,these EFLI test results are recorded  and appear in  the reports for reference.

  NEW EQUIPMENT

All new equipment that is put into service must have a “new to service tag” attached to the appliance.

the following should appear on the tag

New To Service

Not tested to AS/NZS3760:2010

Tag Number:

Date into service:

tagged by:

Best practice,as recommended by Test Right Services, is to test all new equipment as per AS/NZS3760:2010 . This also serves to have an accurate asset list of all equipment in use on the site and peace of mind that the new equipment is safe to use.

I have had many new items fail due to polarity issues and earthing issues on new equipment.

Leakage failure due to poorly designed electronic equipment.

So many items enter the Australian market without the c-tick logo

Electrical and electronic products sold into the Australian and New Zealand market must be RCM ( Regulatory Compliance Mark) compliant. Make sure your equipment is compliant and have the c-tick logo.

RCD’s (Safety Switches)

Tested as per AS/NZS3760:2010 . Trip Time tests and Push Button Tests conducted 24,12,6 and 3 monthly depending on location and use.

The PAT machine has a built in RCD testing facility and all test results are stored and downloaded to the software for reporting. All these results are included in the test and tag reports provided by Test Right services.

Accreditation

Res.Electrical License : 72881

RMIT Certificate: TT1114

Insured as per QLD Electrical requirements

light bulb, idea, creativity
fire extinguisher, signal, fire

FIRE EQUIPMENT

All portable fire equipment serviced to AS1851:2012 .Supply and installation of Fire Extinguishers , Fire Blankets and Fire Hose Reels as per AS2444:2001. Failed units are replaced with a cost effective solution. Old  Fire extinguishers removed for disposal.

As a building owner or occupier you have a responsibility to ensure all fire equipment is inspected on a regular basis as per AS1851:2012 standards guide lines.

  INSPECTION

Visual inspection looking for damage and rust on the cylinder. Making sure all instructions are legible and without deterioration. A fire location sign is installed above the equipment as per standards. making sure the equipment has a service tag attached to the unit.

  TESTING

The fire extinguisher is removed from the bracket for testing. Bracket is checked as well as all fittings on the equipment. Anti tamper is replaced and pressure checked on the gauge if equipped. The Fire extinguisher is weighed and checked as per unit specs. The extinguisher is cleaned and the service tag is stamped with the appropriate service level number .

  REPORTS

All data is entered into the PAT machine Fire Testing Module and PDF reports are extracted via the software.

Asset Summary

Assist List

Detailed test per item

Yearly Condition Report

Non compliance report with recommendations on rectification or replacement of failed equipment

  Accreditation

QBCC contracting Licence: 1304264

FPAS Inspect and Test: IT27193

Fully Insured

Emergency Exit Light Maintenance

Emergency exit light discharge maintenance as per AS/NZS2293,2:1995.Logbooks provided and updated 6 monthly

Non compliance report with recommendations on rectification or replacement of failed equipment .

emergency exit, escape, fire
